Leak Detection Solution

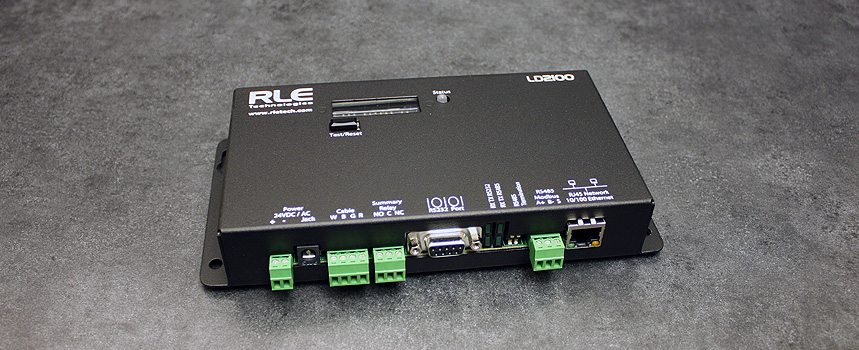

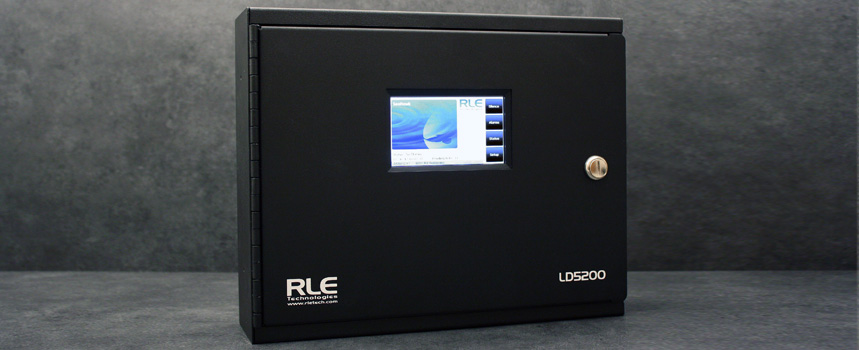

RLE Distance Read Controllers
Protecting a facility from damaging leaks is an important part of any disaster mitigation plan. The RLE Distance Read Controllers pairs superior leak detection technology with an easy-to-use interface. This integration helps users quickly and efficiently establish a distance-read leak detection system that reliably protects valuable assets.
Once the unit is connected to a network, a robust web interface expands the capabilities of the unit. Use the web interface’s interactive facility mapping tool to create an interactive overlay that displays on top of an uploaded floor map image. When a leak is detected, the LD5200 displays its location on the map, making leak location quick and easy.
Technical Specification
Key Features
Monitor up to 10,000 feet of conductive fluid sensing cable or 7,000 feet of chemical sensing cable
Included Equipment: controller with build-in or external (depends on model) power supply, leader cable, end-of-line (EOL) terminator
Additional Requirements: Sensing cable (as needed for application)
Power: 100-240VAC@ 500mA max, 50/60Hz power supply; dedicated circuit required
Sensing Cable Input – Compatible with all SeaHawk sensing cables (not included)
Cable Input: Requires 15ft (4.6m) leader cable and EOL (included)
Maximum Sensing Cable Length: upto 10,000ft (3,048m) of conductive fluid sensing cable, or upto 7,000ft (2,134m) of chemical sensing cable
Minimum Sensing Cable Length: 35ft (11m)
Detection Accuracy: ± 2ft (0.6m) +/- 0.5% of the cable length
Detection Repeatability: ± 2ft (0.6m) +/- 0.25% of the cable length
Detection Response Time: 5-990 seconds, software adjustable in 5 second increments; ±2 seconds
OutputsAnalog: 4-20mA Loop Powered, 18-36VDC, RL = 500 Ohm max.
Relay: 1 DPDT Leak Relay, 1 DPDT Cable Break Relay (allows each alarm to be sent to two places); 1A @ 24VDC, 0.5A resistive @ 120VAC; configurable for supervised or non-supervised, latched or non-latched
Maintenance Relay: 1A @ 24VDC, 0.5A resistive @ 120VAC; configurable for supervised or non-supervised, latched or non-latched
Communication PortsEIA-485 (Port 1, Port 2, Port 3): 9600, 19200, or 38400 baud (selectable); No parity, 8 data bits, 1 stop bit
EIA-232: 9600 baud; No parity, 8 data bits, 1 stop bit
RJ-45: 10/100BaseT Ethernet port (TCP/IP)
ProtocolsEIA-485: Modbus RTU Master & Slave; BACnet MS/TP; N2, Slave
EIA-232: Terminal emulation, VT100 compatible
RJ-45: Ethernet: TCP/IP; Modbus/TCP/UDP, Master & Slave; SNMP V1, V2, V3, NTP, SMTP, DNS; BACnet/IP
Alarm NotificationAudible Alarm: 85DBA @ 2ft (0.6m); re-sound 0-999min
Visible Alarm: Alarm indicated on LCD touch screen and through web interface
Logging Capabilities – Logs are downloadable to .txt file
Alarm History/Event Log: Last 1,024 events
Trend Log: Cable current level once per day, for the last 365 days
Login SecurityLCD Touch Screen: No password required to view controller status and data. Administrator password limits access to configuration options.
Web Interface: Username and password can be configured.
Front Panel InterfaceDisplay: 480 x 272 pixel color backlit LCD touch screen; 95.04mm x 53.85mm
Operating EnvironmentTemperature: 32° to 122°F (0° to 50°C)
Humidity: 5% to 95% RH, non-condensing
Altitude: 15,000ft (4,572m) max.
Storage Environment: -4° to 158°F (-20° to 70°C)
Dimensions: 12.5″W x 10″H x 3.25″D (318mmW x 254mmH x 83mmD)
Weight: 8.2 lbs. (3.7kg)
Mounting: Wall mount Type 1 enclosure
Certifications: CE; ETL listed: conforms to UL 61010-1, EN 61010, CSA C22.2 No. 61010-1, IEC 61326:1997; RoHS compliant
Leak Detection Solution

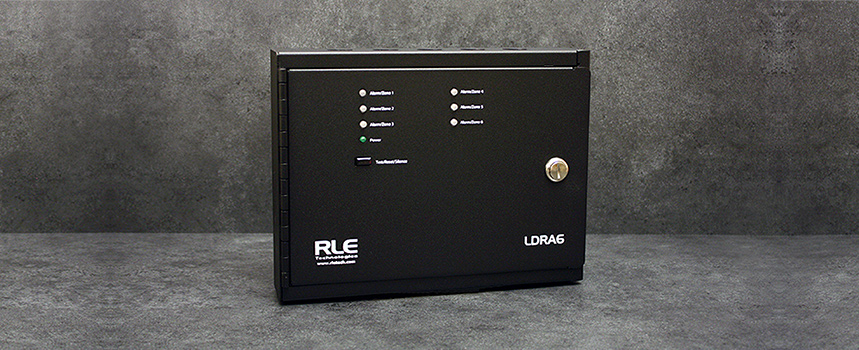

RLE Zone Controllers
The LDRA6 accommodates six inputs that can be configured for zone water detection or as remote alarm annunciators. An LDRA6 can monitor for both leaks & alarms generated by networked equipment.
As a zone leak detection solution, the LDRA6 is compatible with SeaHawk sensing cables and SeaHawk SD-Z & SD-Z1 spot detectors. This allows the LDRA6 to detect the presence of water, conductive fluids, and chemicals. When a leak is detected, the LDRA6 annunciates an alarm for the corresponding zone.
Each of the LDRA6’s six zones can accommodate up to 1,000 feet (305m) of sensing cable or one or more spot detectors. One leader cable is required for EACH ZONE of leak detection.
As a remote alarm status panel, each of the inputs can be configured to relay and annunciate alarms from equipment and sensors that provide a digital dry contact signal. Common inputs to the LDRA6 include HVAC units, power distribution devices (PDU), uninterruptible power supplies (UPS), and generator summary/alarm contacts.
Technical Specification
Key Features
Included Equipment : LDRA6 / LD1000 alarm panel
Additional Requirements: Power supply, leader cable, end-of-line (EOL) terminator, sensing cable (as needed for application)
Power: 24VDC@ 600mA max.; requires power supply: PSWA-DC-24 (not included)
Inputs
Leak Detection Cable: Compatible with SeaHawk sensing cable and SD-Z and SD-Z1 spot detectors (not included)
Cable Input: Requires 15ft (4.6m) leader cable and EOL terminator for each zone (not included)
Maximum Length: 1000 feet (305m) of conductive fluid sensing cable and/or spot detectors per zone; 6000 feet (1830m) total, or 700 feet (213m) of chemical sensing cable per zone; 4200 feet (1280m) total
Detection Response Time Digital: When used with conductive fluid sensing cable or chemical sensing cable, 20-3600sec, software adjustable in 10 second increments; ±2sec Dry Contact NO/NC.
Outputs
Relay: 1 Form C Summary Alarm Relay, 6 Form C alarms, one per input/zone 1A @ 24VDC, 0.5A resistive @ 120VAC; Configurable for supervised or non-supervised, latched or non-latched
Communication Ports (LDRA6 only)
EIA-232: 9600 baud; Parity none; 8 data bits, 1 stop bit
EIA-485: 1200, 2400, 9600 or 19,200 baud; Parity none, odd, even (programmable); 8 data bits, 1 stop bit
Protocols
Terminal Emulation (EIA-232): VT100 compatible
Modbus (EIA-485): Slave; RTU Mode; Supports function codes 03, 04, 06, and 16
Alarm Notification
Audible Alarm: 85DBA @ 2ft (0.6m); re-sound (disabled, 8,16 or 24 hours)
Visible Alarm: LED: Alarm: red; Cable Fault: yellow
Front Panel Interface
LED Indicators: Power: 1 green (on/off); 1 tri-color Status LED per zone (6 total) (Power On: green; Alarm: red; Cable Fault: yellow)
Push Buttons: Quiet/Test/Reset: 1
Operating Environment
Temperature: 32° to 122°F (0° to 50°C)
Humidity: 5% to 95% RH, non-condensing
Altitude: 15,000ft (4572m) max.
Storage Environment: -4° to 158°F (-20° to 70°C)
Dimensions: 10.5″W x 8.0″H x 2.0″D (267mmW x 203mmH x 51mmD)
Weight: 4 lbs. (1.82kg)
Mounting: Wall mount enclosure
Certifications: CE; ETL listed: conforms to UL 61010-1, EN 61010, CSA C22.2 No. 61010-1, IEC 61326:1997; RoHS compliant
Leak Detection Solution
There are a few predictable locations for leaks to occur. If you are checking for leaks in drip pans or floor drains, RLE’s fluid spot detectors are an ideal solution. They will identify leaks and notify the right people to take action.

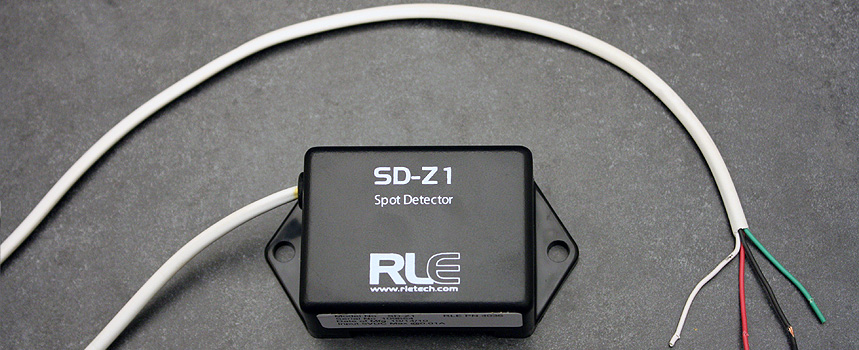

RLE SD-Z1
The SD-Z1 is a single zone spot detector designed to work with zone leak detection systems including the F200, LD310, LD1000, and LDRA6.
RLE recommends using only one SD-Z1 per zone. Spot detectors are ideal for small spaces, and are the most economical way to detect fluids in confined areas, such as condensation drip pans.

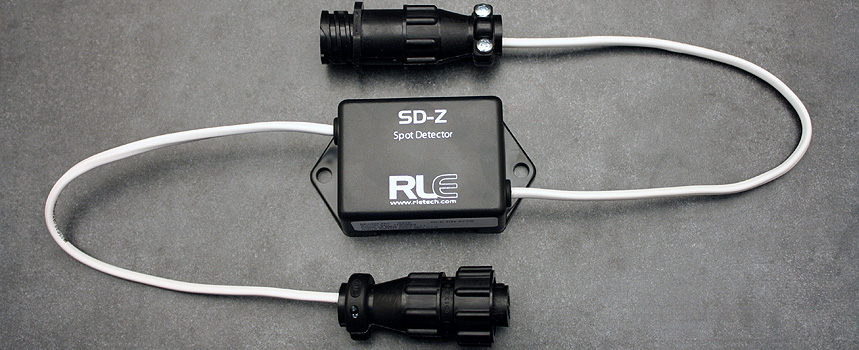

RLE SD-Z
Designed to work with all of RLE’s leak detection controllers, the SD-Z spot detector can be connected to other SD-Z units or to sensing or non-sensing cable.
The SD-Z can be used with either zone or distance-read leak detection controllers. When used with a distance-read system, the SD-Z simulates 50 feet of cable – 25ft. (7.62m) from the male connector to the SD-Z, and 25ft. (7.62m) from the SD-Z to the female connector.
Spot detectors are ideal for small spaces, and are the most economical way to detect fluids in confined areas, such as condensation drip pans.

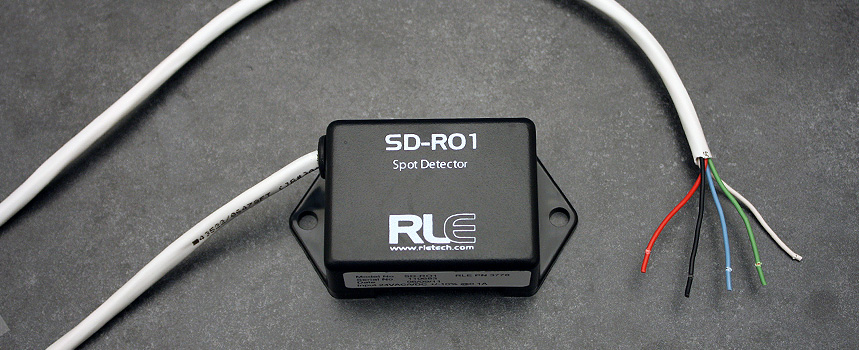

RLE SD-RO1
The SD-RO1 is a single zone spot detector with one relay output. It can be used in conjunction with any product that accepts a digital dry contact input.
Spot detectors are ideal for small spaces, and are the most economical way to detect fluids in confined areas, such as condensation drip pans.
Note: The SD-RO1 requires an isolated 24 volt power supply. RLE recommends and stocks the WA-AC-24-ST. The PSWA-DC-24 may also be used, but if a DC power supply is used the SD-RO1 will be a latching device – once an alarm is detected, the spot detector will remain in an alarm state until power is cycled to the SD-RO1. Power supplies are available for purchase separately.
Leak Detection Solution

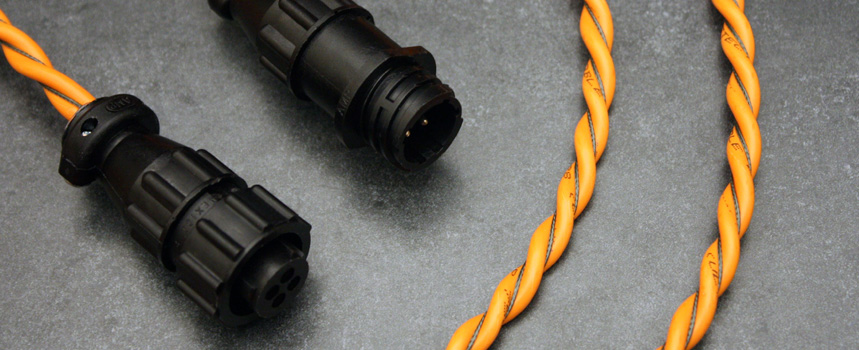

RLE Conductive Fluid Sensing Cable
RLE’s conductive fluid sensing cable provides optimal protection for your facility when you don’t know exactly where fluid infiltration might occur
By running a cable around the perimeter of a room and/or in a serpentine pattern under a floor, you know whenever as little as a dropper-full of water touches that cable. RLE’s patented design assures fast response time while minimizing or eliminating false alarms due to dust, debris, or other objects on the cable.
And with over 9 million feet (2,743,200 meters) of RLE’s conductive fluid sensing cable installed world wide, you can rest easy knowing that your facility is protected by the industry standard for reliable leak detection.
RLE’s orange sensing cable (SC) reliably detects the presence of water leaks and other conductive fluids. It’s one of our hallmark products, and RLE Technologies has held the patent for this particular cable since 2000.
RLE’s conductive fluid sensing cable is:
Durable – manufactured with an abrasion-resistant polymer core, which increases strength and durability. Definitely stands up to foot traffic!
Flexible – easily bends around corners and wraps around pipes, while resisting bends and kinks.
Resists False Alarms – engineered specifically to resist contamination and constructed from non-conductive polymers to help eliminate false alarms!
Quick to Install – each end of the cable contains mating connectors – this makes it easy to install new systems and to add lengths of cable to existing systems.
Easy to Clean – when it’s visibly dirty, clean it quickly with Dawn dish soap or rubbing alcohol. No special cleaners or cleaning systems required.
Fast Drying – gently wipe the cable dry, and it’s ready to detect the next leak.
Plus – all of our sensing cables are manufactured and assembled in the USA.
With over 9 million feet of leak detection sensing cable installed in systems around the globe, you can’t beat the durability or reliability of our leak detection sensing cables.
Technical Specification
Key Features
Plenum Rating: CL2P (UL)
Sheer Strength: >180 lbs. (>81kg)
Cut Through Resistance: >40 lbs. (>18kg) with .005in (0.127mm) blade
Abrasion Resistance: 60 cycles per UL 719
Connector: 4 pin, 0.96in (24.38mm) diameter
Resistance per Foot: 2.8 ohms
Operating Environment
Temperature: 32° to 167°F (0° to 75°C)
Humidity: 5% to 95% RH, non-condensing
Altitude: 15,000ft (4,572m) max.
Storage Environment: -22° to 185°F (-30° to 85°C)
Dimensions: Diameter of cable not to exceed 0.25in (6.35mm)SC-10: 10ft (3.05m)
SC-17: 17ft (5.18m)
SC-25: 25ft (7.62m)
SC-50: 50ft (15.24m)
SC-100: 100ft (30.48m)
SC-CL-xx: Custom Lengths (available upon request)
Weight: .02 lbs./ft (29.74g/m)
Certifications: CE; UL CL2P; RoHS Compliant; Plenum Rated; Patent No. 6,144,209
